ISWR臥式熱水管道泵說明書

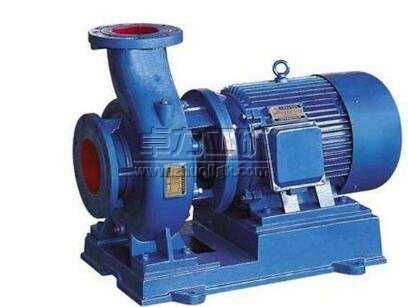

ISWR臥式熱水管道泵
ISWR臥式熱水管道泵|ISWR臥式熱水泵|臥式離心泵
ISWR臥式熱水管道泵是在ISW臥式管道離心泵上開發的延伸產品，其特點是能夠輸送較高溫度的水，溫度最高可耐120℃。在暖氣熱水輸送的領域有較大的使用優點。并嚴格按照國際iso2858進行設計制造，該熱水管道泵產品軸封選用硬質合金機械密封裝置，具有高效節能、性能可靠、安裝使用方便等特點。
ISWR臥式熱水管道泵廣泛適用于：冶金、化工、紡織、造紙以及賓館飯店等鍋爐熱水增壓循環輸送及城市采暖系統，iswr型使用溫度t≤120℃。
臥式熱水管道離心泵ISWR型結構簡圖
臥式熱水管道離心泵ISWR型號意義
ISWR臥式熱水管道泵性能參數表
|
型號
|
流量
|
揚程
m |
效率
% |
轉速
r/min |
電機
功率 kw |
汽蝕
余量 m |
重量
kg |
|
|
m3/h
|
l/s
|
|||||||
|
ISWR15-80
|
1.1
1.5 2.0 |
0.3
0.42 0.55 |
8.5
8 7 |
26
34 34 |
2900
|
0.18
|
2.3
|
17
|
|
ISWR20-110
|
1.8
2.5 3.3 |
0.50
0.69 0.91 |
16
15 13.5 |
25
34 35 |
2900
|
0.37
|
2.3
|
25
|
|
ISWR20-160
|
1.8
2.5 3.3 |
0.50
0.69 0.91 |
33
32 30 |
19
25 23 |
2900
|
0.75
|
2.3
|
29
|
|
ISWR25-110
|
2.8
4.0 5.2 |
0.78
1.11 1.44 |
16
15 13.5 |
34
42 41 |
2900
|
0.55
|
2.3
|
26
|
|
ISWR25-125
|
2.8
4.0 5.2 |
0.78
1.11 1.44 |
20.6
20 18 |
28
36 35 |
2900
|
0.75
|
2.3
|
28
|
|
ISWR25-125A
|
2.5
3.6 4.6 |
0.69
1.0 1.28 |
17
16 14.4 |
35
35 35 |
2900
|
0.55
|
2.3
|
27
|
|
ISWR25-160
|
2.8
4.0 5.2 |
0.78
1.11 1.44 |
33
32 30 |
24
32 33 |
2900
|
1.5
|
2.3
|
39
|
|
ISWR25-160A
|
2.6
3.7 4.9 |
0.12
1.03 1.36 |
29
28 26 |
31
31 31 |
2900
|
1.1
|
2.3
|
34
|
|
ISWR32-100I
|
4.4
6.3 8.3 |
1.22
1.75 2.32 |
13.2
12.5 11.3 |
48
54 53 |
2900
|
0.75
|
2.0
|
32
|
|
ISWR32-125
|
3.5
5.0 6.5 |
0.97
1.39 1.8 |
22
20 18 |
40
44 42 |
2900
|
0.75
|
2.3
|
28
|
|
ISWR32-125A
|
3.1
4.5 5.8 |
0.86
1.25 1.61 |
17.6
16 14.4 |
43
43 43 |
2900
|
0.55
|
2.3
|
28
|
|
ISWR32-160
|
3.1
4.5 5.8 |
0.86
1.25 1.61 |
33
32 30 |
34
40 42 |
2900
|
1.5
|
2.3
|
28
|
|
ISWR32-160I
|
4.4
6.3 8.3 |
1.22
1.75 2.32 |
33.2
32 30.2 |
34
40 42 |
2900
|
2.2
|
2.0
|
47
|
|
ISWR32-200
|
3.1
4.5 5.8 |
0.86
1.25 1.61 |
51
50 48 |
28
35 37 |
2900
|
3
|
2.0
|
47
|
|
ISWR32-200I
|
4.4
6.3 8.3 |
1.22
1.75 2.32 |
50.5
50 48 |
26
33 35 |
2900
|
4
|
2.0
|
43
|
|
ISWR32-200IA
|
2.8
4.0 5.2 |
0.78
1.11 1.44 |
44.6
44 42.7 |
34
40 42 |
2900
|
2.2
|
2.0
|
74
|
|
ISWR40-100
|
4.4
6.3 8.3 |
1.22
1.75 2.31 |
13.2
12.5 11.3 |
48
54 53 |
2900
|
0.55
|
2.3
|
32
|
|
ISWR40-100A
|
3.9
5.6 7.4 |
1.08
1.56 2.06 |
10.6
10 9 |
52
52 52 |
2900
|
0.37
|
2.3
|
32
|
|
ISWR40-125
|
4.4
6.3 8.3 |
1.22
1.75 2.31 |
21
20 18 |
41
46 43 |
2900
|
1.1
|
2.3
|
34
|
|
ISWR40-125A
|
3.9
5.6 7.4 |
1.08
1.56 2.06 |
17.6
16 14.4 |
40
45 41 |
2900
|
0.75
|
2.3
|
33
|
|
ISWR40-160
|
4.4
6.3 8.3 |
1.22
1.75 2.31 |
33
32 30 |
35
40 40 |
2900
|
2.2
|
2.3
|
47
|
|
ISWR40-160A
|
4.1
5.9 7.8 |
1.14
1.64 2.17 |
29
28 26.3 |
34
39 39 |
2900
|
1.5
|
2.3
|
43
|
|
ISWR40-160B
|
3.8
5.5 7.2 |
1.06
1.53 2.0 |
25.5
24 22.5 |
34
38 37 |
2900
|
1.1
|
2.3
|
38
|
|
ISWR40-200
|
4.4
6.3 8.3 |
1.22
1.75 2.31 |
51
50 48 |
26
33 32 |
2900
|
4
|
2.3
|
74
|
|
ISWR40-200A
|
4.1
5.9 7.8 |
1.14
1.64 2.17 |
45
44 42 |
26
31 30 |
2900
|
3
|
2.3
|
62
|
|
ISWR40-200B
|
3.7
5.3 7.0 |
1.03
1.47 1.94 |
38
36 34.5 |
29
29 29 |
2900
|
2.2
|
2.3
|
52
|
|
ISWR40-250
|
4.4
6.3 8.3 |
1.22
1.75 2.31 |
82
80 74 |
24
28 28 |
2900
|
7.5
|
2.3
|
105
|
|
ISWR40-250A
|
4.1
5.9 7.8 |
1.14
1.64 2.17 |
72
70 65 |
24
28 27 |
2900
|
5.5
|
2.3
|
98
|
|
ISWR40-250B
|
3.8
5.5 7.0 |
1.06
1.53 1.94 |
61.5
60 56 |
23
27 26 |
2900
|
4
|
2.3
|
77
|
|
ISWR40-100I
|
8.8
12.5 16.3 |
2.44
3.47 4.53 |
13.2
12.5 11.3 |
55 62 60
|
2900
|
1.1
|
2.3
|
34
|
|
ISWR40-100IA
|
8
11 14.5 |
2.22
3.05 4.03 |
10.6
10 9 |
60
60 60 |
2900
|
0.75
|
2.3
|
32
|
|
ISWR40-125I
|
8.8
12.5 16.3 |
2.44
3.47 4.53 |
21.2
20 17.8 |
49
58 57 |
2900
|
1.5
|
2.3
|
38
|
|
ISWR40-125IA
|
8
11 14.5 |
2.22
3.05 4.03 |
17
16 14 |
57
57 57 |
2900
|
1.1
|
2.3
|
33
|
|
ISWR40-160I
|
8.8
12.5 16.3 |
2.44
3.47 4.53 |
33
32 30 |
45
52 51 |
2900
|
3
|
2.3
|
56
|
|
ISWR40-160IA
|
8.2
11.7 15.2 |
2.28
3.25 4.22 |
29
28 26 |
44
51 50 |
2900
|
2.2
|
2.3
|
47
|
|
ISWR40-160IB
|
7.3
10.4 13.5 |
2.38
2.89 3.75 |
23
22 20.5 |
50
50 50 |
2900
|
1.5
|
2.3
|
43
|
|
ISWR40-200I
|
8.8
12.5 16.3 |
2.44
3.47 4.53 |
51.2
50 48 |
38
46 46 |
2900
|
5.5
|
2.3
|
85
|
|
ISWR40-200IA
|
8.3
11.7 15.3 |
2.31
3.25 4.25 |
45
44 42 |
37
45 45 |
2900
|
4
|
2.3
|
75
|
|
ISWR40-200IB
|
7.5
10.6 13.8 |
2.08
2.94 3.83 |
37
36 34 |
44
44 44 |
2900
|
3
|
2.3
|
63
|
|
ISWR40-250I
|
8.8
12.5 16.3 |
2.44
3.47 4.53 |
81.2
80 77.5 |
31
38 40 |
2900
|
11
|
2.3
|
145
|
|
ISWR40-250IA
|
8.2
11.6 15.2 |
2.28
3.22 4.22 |
71
70 68 |
38
38 38 |
2900
|
7.5
|
2.3
|
95
|
|
ISWR40-250IB
|
7.6
10.8 14 |
2.11
3.0 3.89 |
61.4
60 58 |
37
37 37 |
2900
|
7.5
|
2.3
|
94
|
|
ISWR40-250IC
|
7.1
10.0 13.1 |
1.97
2.78 3.64 |
53.2
52 50.4 |
36
36 36 |
2900
|
5.5
|
2.3
|
88
|
|
ISWR50-100
|
8.8
12.5 16.3 |
2.44
3.47 4.53 |
13.6
12.5 11.3 |
55
62 60 |
2900
|
1.1
|
2.3
|
36
|
|
ISWR50-100A
|
8
11 14.5 |
2.22
3.05 4.03 |
11
10 9 |
60
60 60 |
2900
|
0.75
|
2.3
|
35
|
|
ISWR50-125
|
8.8
12.5 16.3 |
2.44
3.47 4.53 |
21.5
20 17.8 |
49
58 57 |
2900
|
1.5
|
2.3
|
43
|
|
ISWR50-125A
|
8
11 14.5 |
2.22
3.05 4.03 |
17
16 14 |
57
57 57 |
2900
|
1.1
|
2.3
|
38
|
|
ISWR50-160
|
8.8
12.5 16.3 |
2.44
3.47 4.53 |
33
32 30 |
45
52 51 |
2900
|
3
|
2.3
|
59
|
|
ISWR50-160A
|
8.2
11.7 15.2 |
2.28
3.25 4.22 |
29
28 26 |
44
51 50 |
2900
|
2.2
|
2.3
|
51
|
|
ISWR50-160B
|
7.3
10.4 13.5 |
2.38
2.89 3.75 |
23
22 20.5 |
50
50 50 |
2900
|
1.5
|
2.3
|
47
|
|
ISWR50-200
|
8.8
12.5 16.3 |
2.44
3.47 4.53 |
52
50 48 |
38
46 46 |
2900
|
5.5
|
2.3
|
101
|
|
ISWR50-200A
|
8.3
11.7 15.3 |
2.31
3.25 4.25 |
45.8
44 42 |
37
45 45 |
2900
|
4
|
2.3
|
80
|
|
ISWR50-200B
|
7.5
10.6 13.8 |
2.08
2.94 3.83 |
37
36 34 |
44
44 44 |
2900
|
3
|
2.3
|
68
|
|
ISWR50-250
|
8.8
12.5 16.3 |
2.44
3.47 4.53 |
82
80 77.5 |
29
38 40 |
2900
|
11
|
2.3
|
160
|
|
ISWR50-250A
|
8.2
11.6 15.2 |
2.28
3.22 4.22 |
71.5
70 68 |
38
38 38 |
2900
|
7.5
|
2.3
|
115
|
|
ISWR50-250B
|
7.6
10.8 14 |
2.11
3.0 3.89 |
61.4
60 58 |
37
37 37 |
2900
|
7.5
|
2.3
|
114
|
|
ISWR50-250C
|
7.1
10.0 13.1 |
1.97
2.78 3.64 |
53.2
52 50.4 |
36
36 36 |
2900
|
5.5
|
2.3
|
108
|
|
ISWR50-100I
|
17.5
25 32.5 |
4.86
6.94 9.03 |
13.7
12.5 10.5 |
67
69 69 |
2900
|
1.5
|
2.5
|
41
|
|
ISWR50-100IA
|
15.6
22.3 29 |
4.3
6.19 8.1 |
11
10 8.4 |
65
67 68 |
2900
|
1.1
|
2.5
|
36
|
|
ISWR50-125I
|
17.5
25 32.5 |
4.86
6.94 9.03 |
21.5
20 18 |
60
68 67 |
2900
|
3
|
2.5
|
56
|
|
ISWR50-125IA
|
15.6
22.3 29 |
4.33
6.19 8.1 |
17
16 13.6 |
58
66 65 |
2900
|
2.2
|
2.5
|
48
|
|
ISWR50-160I
|
17.5
25 32.5 |
4.68
6.94 9.03 |
34.4
32 27.5 |
54
63 60 |
2900
|
4
|
2.5
|
72
|
|
ISWR50-160IA
|
16.4
23.4 30.4 |
4.56
6.5 8.44 |
30
28 24 |
54
62 59 |
2900
|
4
|
2.5
|
71
|
|
ISWR50-160IB
|
15.0
21.6 28 |
4.17
6.0 7.78 |
26
24 20.6 |
58
58 58 |
2900
|
3
|
2.5
|
59
|
|
ISWR50-200I
|
17.5
25 32.5 |
4.86
6.94 9.03 |
52.7
50 45.5 |
49
58 59 |
2900
|
7.5
|
2.5
|
108
|
|
ISWR50-200IA
|
16.4
23.5 30.5 |
4.56
6.53 8.47 |
46.4
44 40 |
48
57 58 |
2900
|
7.5
|
2.5
|
107
|
|
ISWR50-200IB
|
15.2
21.8 28.3 |
4.22
6.06 7.86 |
40
38 34.5 |
55
55 55 |
2900
|
5.5
|
2.5
|
100
|
|
ISWR50-250I
|
17.5
25 32.5 |
4.86
6.94 9.03 |
82
80 76.5 |
39
50 52 |
2900
|
15
|
2.5
|
175
|
|
ISWR50-250IA
|
16.4
23.4 30.5 |
4.56
6.5 8.47 |
71.5
70 67 |
39
50 52 |
2900
|
11
|
2.5
|
165
|
|
ISWR50-250IB
|
15
21.6 28 |
4.17
6.0 7.78 |
61
60 57.4 |
38
49 54 |
2900
|
11
|
2.5
|
165
|
|
ISWR50-315I
|
17.5
25 32.5 |
4.86
6.94 9.03 |
128
125 122 |
30
40 44 |
2900
|
30
|
2.5
|
310
|
|
ISWR50-315IA
|
16.6
23.7 31 |
4.61
6.58 8.6 |
115
113 110 |
30
40 44 |
2900
|
22
|
2.5
|
245
|
|
ISWR50-315IB
|
15.7
22.5 29.2 |
4.36
6.25 8.0 |
103
101 98 |
39
39 39 |
2900
|
18.5
|
2.5
|
215
|
|
ISWR50-315IC
|
14.4
20.6 26.8 |
4.0
5.72 7.44 |
86
85 83 |
38
38 38 |
2900
|
15
|
2.5
|
195
|
|
ISWR65-100
|
17.5
25 32.5 |
4.86
6.94 9.03 |
13.7
12.5 10.5 |
67
69 69 |
2900
|
1.5
|
2.5
|
46
|
|
ISWR65-100A
|
15.6
22.3 29 |
4.3
6.19 8.1 |
11
10 8.4 |
65 67 68 |
2900
|
1.1
|
2.5
|
41
|
|
ISWR65-125
|
17.5
25 32.5 |
4.86
6.94 9.03 |
21.5
20 18 |
60
68 67 |
2900
|
3
|
2.5
|
58
|
|
ISWR65-125A
|
15.6
22.3 29 |
4.33
6.19 8.1 |
17
16 14.4 |
58
66 65 |
2900
|
2.2
|
2.5
|
49
|
|
ISWR65-160
|
17.5
25 32.5 |
4.86
6.94 9.03 |
34.4
32 27.5 |
54
63 60 |
2900
|
4
|
2.5
|
75
|
|
ISWR65-160A
|
16.4
23.4 30.4 |
4.56
6.5 8.44 |
30
28 24 |
54
62 59 |
2900
|
4
|
2.5
|
75
|
|
ISWR65-160B
|
15.0
21.6 28 |
4.17
6.0 7.78 |
26
24 20.6 |
2900
|
3
|
2.5
|
63
|
|
|
ISWR65-200
|
17.5
25 32.5 |
4.86
6.94 9.03 |
52.7
50 45.5 |
49
58 59 |
2900
|
7.5
|
2.5
|
107
|
|
ISWR65-200A
|
16.4
23.5 30.5 |
4.56
6.53 8.47 |
46.4
44 40 |
48
57 58 |
2900
|
7.5
|
2.5
|
107
|
|
ISWR65-200B
|
15.2
21.8 28.3 |
4.22
6.06 7.86 |
40
38 34.5 |
55
55 55 |
2900
|
5.5
|
2.5
|
100
|
|
ISWR65-250
|
17.5
25 32.5 |
4.86
6.94 9.03 |
82
80 76.5 |
39
50 52 |
2900
|
15
|
2.5
|
180
|
|
ISWR65-250A
|
16.4
23.4 30.5 |
4.56
6.5 8.47 |
71.5
70 67 |
39
50 52 |
2900
|
11
|
2.5
|
170
|
|
ISWR65-250B
|
15
21.6 28 |
4.17
6.0 7.78 |
61
60 57.4 |
38
49 54 |
2900
|
11
|
2.5
|
170
|
|
ISWR65-315
|
17.5
25 32.5 |
4.86
6.94 9.03 |
127
125 122 |
32
40 44 |
2900
|
30
|
2.5
|
320
|
|
ISWR65-315A
|
16.6
23.7 31 |
4.61
6.58 8.6 |
115
113 110 |
32
40 44 |
2900
|
22
|
2.5
|
255
|
|
ISWR65-315B
|
15.7
22.5 29.2 |
103
101 98 |
39
39 39 |
2900
|
18.5
|
2.5
|
225
|
|
|
ISWR65-315C
|
14.4
20.6 26.8 |
4.0
5.72 7.44 |
86
85 83 |
38
38 38 |
2900
|
15
|
2.5
|
205
|
|
ISWR65-100I
|
35
50 65 |
9.72
13.9 18.1 |
13.8
12.5 10 |
67
73 70 |
2900
|
3
|
3.0
|
63
|
|
ISWR65-100IA
|
31.3
44.7 58 |
8.7
12.4 16.1 |
11
10 8 |
66
72 69 |
2900
|
2.2
|
3.0
|
53
|
|
ISWR65-125I
|
35
50 65 |
9.72
13.9 18.1 |
22
20 17 |
67
72.5 70 |
2900
|
5.5
|
3.0
|
99
|
|
ISWR65-125IA
|
31.3
45 58 |
8.7
12.5 16.1 |
17.5
16 13.6 |
66
71 69 |
2900
|
4
|
3.0
|
78
|
|
ISWR65-160I
|
35
50 65 |
9.72
13.9 18.1 |
35
32 28 |
63
71 70 |
2900
|
7.5
|
3.0
|
103
|
|
ISWR65-160IA
|
32.7
46.7 61 |
9.1
13.0 16.9 |
30.6
28 24 |
62
70 69 |
2900
|
7.5
|
3.0
|
103
|
|
ISWR65-160IB
|
30.3
43.3 56.3 |
8.4
12.0 15.6 |
26
24 21 |
69
69 69 |
2900
|
5.5
|
3.0
|
97
|
|
ISWR65-200I
|
35
50 65 |
9.72
13.9 18.1 |
53.5
50 46 |
55
67 68 |
2900
|
15
|
3.0
|
176
|
|
ISWR65-200IA
|
32.8
47 61 |
9.1
13.1 16.9 |
47
44 40 |
54
66 67 |
2900
|
11
|
3.0
|
166
|
|
ISWR65-200IB
|
30.5
43.5 56.6 |
8.5
12.1 15.7 |
40.6
38 33.4 |
65
65 65 |
2900
|
7.5
|
3.0
|
114
|
|
ISWR65-250I
|
35
50 65 |
9.72
13.9 18.1 |
83
80 72 |
52
59 60 |
2900
|
22
|
3.0
|
235
|
|
ISWR65-250IA
|
32.5
46.7 61 |
9.0
13.0 16.9 |
73
70 63 |
52
59 60 |
2900
|
18.5
|
3.0
|
205
|
|
ISWR65-250IB
|
30
43.3 56 |
8.3
12.0 15.6 |
62
60 54 |
58
58 58 |
2900
|
15
|
3.0
|
180
|
|
ISWR65-315I
|
35
50 65 |
9.72
13.9 18.1 |
128
125 121 |
44
54 57 |
2900
|
37
|
3.0
|
350
|
|
ISWR65-315IA
|
32.5
46.5 60.5 |
9.0
12.9 16.8 |
112.6
110 106.4 |
43
54 57 |
2900
|
30
|
3.0
|
335
|
|
ISWR65-315IB
|
31
44.5 58 |
8.6
12.4 16.1 |
102.5
100 98 |
53
53 53 |
2900
|
30
|
3.0
|
335
|
|
ISWR100-315A
|
66.5
95 123.6 |
18.5
26.4 34.3 |
119
113 103 |
65
66 67 |
2900
|
55
|
4.0
|
549
|
|
ISWR100-315B
|
63
90 117 |
17.5
25 32.5 |
106.6
101 92 |
65
65 65 |
2900
|
45
|
4.0
|
439
|
|
ISWR100-315C
|
58
82 107 |
16.1
22.8 29.7 |
90
85 76 |
63
63 63 |
2900
|
37
|
4.0
|
385
|
|
ISWR100-350
|
60
100 120 |
16.7
27.8 33.3 |
153.6
150 142 |
72
57 74 |
2900
|
90
|
4.0
|
950
|
|
ISWR100-350A
|
61
87 113 |
16.9
24.2 31.4 |
145.6
142 134 |
75
75 75 |
2900
|
75
|
4.0
|
830
|
|
ISWR100-350B
|
58
82 107 |
16.1
22.8 29.7 |
138.6
135 127 |
75
75 75 |
2900
|
55
|
4.0
|
600
|
|
ISWR100-100I
|
96
160 192 |
26.7
44.4 53.3 |
14
12.5 10 |
64
73 70 |
2900
|
11
|
4.5
|
115
|
|
ISWR100-125I
|
96
160 192 |
26.7
44.4 53.3 |
24
20 14 |
62
74 69 |
2900
|
15
|
4.5
|
168
|
|
ISWR100-125IA
|
84
140 168 |
23.3
39 46.7 |
20
17 12 |
64
72 69 |
2900
|
11
|
4.5
|
168
|
|
ISWR100-160I
|
96
160 192 |
26.7
44.4 53.3 |
36
32 27 |
69
79 75 |
2900
|
22
|
5.6
|
210
|
|
ISWR100-160IA
|
84
140 168 |
23.3
39 46.7 |
32
28 23.5 |
66
76 72 |
2900
|
18.5
|
5.0
|
210
|
|
ISWR100-200I
|
96
160 192 |
26.7
44.4 53.3 |
53
50 45 |
69
79 78 |
2900
|
37
|
5.2
|
402
|
|
ISWR100-200IA
|
84
140 168 |
23.3
39 46.7 |
48
45 40 |
64
74 73 |
2900
|
30
|
4.5
|
395
|
|
ISWR100-200IB
|
60
100 120 |
16.7
27.8 33.3 |
43
40 36 |
72
72 72 |
2900
|
22
|
4.5
|
360
|
|
ISWR100-250I
|
96
160 192 |
26.7
44.4 53.3 |
83
80 72 |
65
77 74 |
2900
|
55
|
4.8
|
560
|
|
ISWR100-250IA
|
84
140 168 |
23.3
39 46.7 |
75
72 65 |
60
72 69 |
2900
|
45
|
4.5
|
420
|
|
ISWR100-250IB
|
60
100 120 |
16.7
27.8 33.3 |
68
65 58 |
70
70 70 |
2900
|
37
|
4.5
|
400
|
|
ISWR125-100
|
96
160 192 |
26.7
44.4 53.3 |
13
12.5 12 |
82
82 82 |
2900
|
11
|
4.0
|
180
|
|
ISWR125-100A
|
86
143 172 |
23.9
39.7 47.8 |
10.4
10 9.6 |
77
77 77 |
290
|
7.5
|
4.0
|
125
|
|
ISWR125-125
|
96
160 192 |
26.7
44.4 53.3 |
22.6
20 17 |
80
80 80 |
2900
|
15
|
4.0
|
220
|
|
ISWR125-125A
|
86
143 172 |
23.9
39.7 47.8 |
18
16 13.6 |
77
77 77 |
2900
|
11
|
4.0
|
210
|
|
ISWR125-160
|
96
160 192 |
26.7
44.4 53.3 |
36
32 28 |
78 78 &, nbsp; 78 |
2900
|
22
|
4.0
|
265
|
|
ISWR125-160A
|
90 150 180 |
25
41
750
|
31.5
28 24.5 |
76
76 76 |
2900
|
18.5
|
4.0
|
230
|
|
ISWR125-160B
|
83
138 166 |
21.7
38.3 46.1 |
27
24 21 |
73
73 73 |
2900
|
15
|
4.0
|
215
|
|
ISWR125-200
|
96
160 192 |
26.7
44.4 53.3 |
55
50 46 |
77
77 77 |
2900
|
37
|
5.5
|
395
|
|
ISWR125-200B
|
83
138 166 |
21.7
38.3 46.1 |
41.3
37.4 34.5 |
75
75 75 |
2900
|
22
|
5.5
|
320
|
|
ISWR125-250
|
96
160 192 |
24.7
44.7
53.3
|
87
80 73 |
75
75 75 |
2900
|
55
|
5.0
|
580
|
|
ISWR125-250A
|
90
150 180 |
25
41.7 50 |
76
70 84 |
74
74 74 |
2900
|
45
|
5.5
|
490
|
|
ISWR125-250B
|
83
138 166 |
21.7
38.3 46.1 |
65
60 55 |
73
73 73 |
2900
|
37
|
5.5
|
430
|
|
ISWR125-215
|
96
160 192 |
26.7
44.7 53.3 |
133
125 119 |
70
70 70 |
2900
|
90
|
5.0
|
790
|
|
ISWR125-315A
|
90
150 180 |
25
41.7 50 |
117
110 104.6 |
70
70 70 |
2900
|
75
|
5.0
|
710
|
|
ISWR125-315B
|
86
143 172 |
23.9
39.7 47.8 |
106.4
100 95.2 |
69
69 69 |
2900
|
75
|
5.0
|
705
|
|
ISWR125-315C
|
80.5
134 161 |
22.4
37.2 44.7 |
96
88 86 |
67
67 67 |
2900
|
55
|
5.0
|
585
|
|
ISWR150-125
|
96
160 192 |
26.7
44.4 53.3 |
22.6
24 17 |
66
76 76 |
2900
|
11
|
4.0
|
210
|
|
ISWR150-125A
|
90
150 180 |
25
41.7 50 |
18
16 13.6 |
77
77 77 |
2900
|
7.5
|
4.0
|
130
|
|
ISWR150-160
|
96
160 192 |
26.7
44.4 53.3 |
36
32 27 |
75
75 75 |
2900
|
22
|
4.0
|
270
|
|
ISWR150-160A
|
90
150 180 |
25
41.7 50 |
32
28 23.5 |
76
76 76 |
2900
|
18.5
|
4.0
|
230
|
|
ISWR150-160B
|
84
141 168 |
23.3
39 46.7 |
27
24 21 |
73
73 73 |
2900
|
15
|
4.0
|
220
|
|
ISWR150-200
|
140
200 260 |
38.9
55.6 72.2 |
13.8
12.5 10.6 |
68
78 78 |
1450
|
15
|
3.0
|
265
|
|
ISWR150-200A
|
125
176 232.5 |
34.7
49.7 64.6 |
11
10 8.5 |
66
76 76 |
1450
|
11
|
3.0
|
244
|
|
ISWR150-200B
|
84
440 168 |
23.3
39 46.7 |
41
38 34 |
75
75 75 |
2900
|
22
|
4.0
|
275
|
|
ISWR150-250
|
140
200 260 |
38.9
55.6 72.2 |
21.8
20 17 |
73
79 77 |
1450
|
18.5
|
3.0
|
300
|
|
ISWR150-250A
|
129
184.4 240 |
35.8
51.2 66.7 |
18.5
17 14.4 |
72
78 76 |
1450
|
15
|
3.0
|
262
|
|
ISWR150-250B
|
117
167 217.5 |
32.5
46.4 60.4 |
15.2
14 12 |
76
76 76 |
1450
|
11
|
3.0
|
241
|
|
ISWR150-315
|
140
200 260 |
38.9
55.6 72.2 |
33.8
32 28 |
70
78 73 |
1450
|
30
|
2.5
|
410
|
|
ISWR150-315A
|
131
187 243 |
36.4
51.9 67.5 |
29.5
28 24.5 |
69
77 77 |
1450
|
22
|
3.5 |
335
|
|
ISWR150-315B
|
121
173 225 |
33.5
48.1 62.5 |
25
24 21 |
76
76 76 |
1450
|
18.5
|
3.5
|
315
|
|
ISWR150-350
|
96
160 192 |
26.7
44.4 53.3 |
153.6
150 142.8 |
80
80 80 |
2900
|
110
|
5.5
|
970
|
|
ISWR150-350A
|
90
150 180 |
25
41.7 50 |
145.6
142 134.8 |
70
70 70 |
2900
|
90
|
5.2
|
790
|
|
ISWR150-350B
|
84
140 168 |
23.3
39 46.7 |
138.6
35 127.8 |
65
76 74 |
2900
|
75
|
5.5
|
705
|
|
ISWR150-400
|
140
200 260 |
38.9
55.6 72.2 |
53
50 44 |
68
75 71 |
1450
|
45
|
3.5
|
490
|
|
ISWR150-400A
|
131
187 243 |
36.4
51.9 67.5 |
46.4
44 38.3 |
67
74 70 |
1450
|
37
|
3.5
|
454
|
|
ISWR150-400B
|
122
174 226.5 |
33.9
48.3 62.9 |
40
38 33 |
73
73 73 |
1450
|
60
|
3.5
|
435
|
|
ISWR150-400C
|
112
160 208 |
31.1
44.4 57.8 |
34
32 28 |
71
71 71 |
1450
|
22
|
3.5
|
365
|
|
ISWR150-250I
|
120
200 240 |
33.3
55.6 66.7 |
87
80 72 |
65
76 74 |
2900
|
75
|
4.5
|
702
|
|
ISWR150-250IA
|
112
187 224 |
31.1
51.9 62.2 |
76
70 63 |
64
75 73 |
2900
|
55
|
4.5
|
451
|
|
ISWR150-250IB
|
104
173 208 |
28.9
48.1 57.8 |
65
60 54 |
63
74 72 |
2900
|
45
|
4.5
|
460
|
|
ISWR150-315I
|
120
200 240 |
33.3
55.6 66.7 |
133
125 120 |
58
72 75 |
2900
|
110
|
4.5
|
980
|
|
ISWR150-315IA
|
112
187 224 |
31.1
51.9 62.2 |
116
110 105 |
57
72 74 |
2900
|
90
|
4.5
|
800
|
|
ISWR200-315IB
|
104
173 208 |
28.9
48.1 57.8 |
100
95 91 |
55
70 72 |
2900
|
75
|
4.5
|
724
|
|
ISWR200-200
|
140
200 260 |
38.9
55.6 72.2 |
13.8
12.5 10.6 |
68
78 78 |
1450
|
15
|
3.0
|
265
|
|
ISWR200-200A
|
125
179 232.5 |
34.7
49.7 64.6 |
11
10 8.5 |
66
76 76 |
1450
|
11
|
3.0
|
244
|
|
ISWR200-250
|
140
200 260 |
38.9
55.6 72.2 |
21.8
20 17 |
73
79 77 |
1450
|
18.5
|
3.0
|
305
|
|
ISWR200-250A
|
129
184.4 240 |
35.8
51.2 66.7 |
18.5
17 14.4 |
72
78 76 |
1450
|
15
|
3.0
|
267
|
|
ISWR200-250B
|
117
167 217.5 |
32.5
46.4 60.4 |
15.2
14 12 |
76
76 76 |
1450
|
11
|
3.0
|
246
|
|
ISWR200-315
|
140
200 260 |
38.9
55.6 72.2 |
33.8
32 28 |
70
78 78 |
1450
|
30
|
3.5
|
417
|
|
ISWR200-315A
|
131
189 243 |
36.4
51.9 67.5 |
29.5
28 24.5 |
69
77 77 |
1450
|
22
|
3.5
|
342
|
|
ISWR200-315B
|
121
173 225 |
33.6
48.1 62.5 |
25
24 21 |
76
76 76 |
1450
|
18.5
|
3.5
|
322
|
|
ISWR200-400
|
140
200 260 |
38.9
55.6 72.2 |
53
50 44 |
68
75 71 |
1450
|
45
|
3.5
|
498
|
|
ISWR200-400A
|
131
187 243 |
36.4
51.9 67.5 |
46.6
44 38.3 |
67
74 70 |
1450
|
37
|
3.5
|
462
|
|
ISWR200-400B
|
122
174 226.5 |
33.9
48.6 62.9 |
44
38 33 |
73
73 73 |
1450
|
30
|
3.5
|
443
|
|
ISWR200-400C
|
112
160 208 |
31.3
44.4 57.8 |
34
32 28 |
71
71 71 |
1450
|
22
|
3.5
|
373
|
|
ISWR200-200I
|
280
400 520 |
77.8
111.1 144 |
13.4
12.5 10.5 |
70
80 79 |
1450
|
22
|
4.0
|
382
|
|
ISWR200-200IA
|
250
358 465 |
69.4
99.4 129.2 |
10.7
10 8.5 |
68
78 77 |
1450
|
18.5
|
4.0
|
346
|
|
ISWR200-250I
|
280
400 520 |
77.8
111.4 144 |
22.2
20 14 |
75
80 72 |
1450
|
30
|
4.0
|
475
|
|
ISWR200-250IA
|
250
358 465 |
69.4
99.4 129.2 |
18
16 11.2 |
73
78 70 |
1450
|
22
|
4.0
|
405
|
|
ISWR200-250IB
|
226
322 419 |
62.8
89.4 116.4 |
14.4
13 7.3 |
70
75 67 |
1450
|
18.5
|
4.0
|
387
|
|
ISWR200-315I
|
280
440 520 |
77.8
111.4 144 |
36
32 26 |
73
80 75 |
1450
|
55
|
4.0
|
675
|
|
ISWR200-315IA
|
262
374 482 |
72.8
103.9 135 |
31.5
28 23 |
72
79 74 |
1450
|
45
|
4.0
|
560
|
|
ISWR200-315IB
|
242
346 450 |
67.2
96.1 125 |
27
24 19.5 |
78
78 78 |
1450
|
37
|
4.0
|
535
|
|
ISWR200-400I
|
280
400 520 |
77.8
111.4 144 |
54.5
50 39 |
75
81 77 |
1450
|
75
|
4.0
|
830
|
|
ISWR200-400IA
|
262
374 486 |
72.8
103.9 135 |
48
44 34 |
80
80 80 |
1450
|
75
|
4.0
|
830
|
|
ISWR200-400IB
|
242
346 450 |
67.2
96.1 125 |
41.4
38 29.6 |
78
78 78 |
1450
|
55
|
5.0
|
685
|
|
ISWR200-400IC
|
224
320 416 |
62.2
88.9 115.6 |
34.9
32 25 |
76
76 76 |
1450
|
45
|
5.0
|
580
|
|
ISWR250-250
|
350
550 650 |
97.2
152.8 180.5 |
22
20 16 |
78
82 81 |
1450
|
45
|
5.0
|
620
|
|
ISWR250-250A
|
300
500 600 |
83.3
139 166.7 |
18.3
17 14 |
76
80 80 |
1450
|
37
|
5.0
|
550
|
|
ISWR250-235
|
300
500 600 |
83.3
139 166.7 |
14
12.5 11 |
73
78 70 |
1450
|
22
|
4.5
|
410
|
|
ISWR250-300
|
300
500 600 |
83.3
139 166.7 |
22
20 16 |
78
78 78 |
1450
|
37
|
4.5
|
550
|
|
ISWR250-315
|
350
550 650 |
97.2
152.8 180.5 |
34
32 28 |
76
80 79 |
1450
|
75
|
5.5
|
890
|
|
ISWR250-315A
|
300
500 600 |
83.3
139 166.7 |
29.5
28 24 |
74
78 77 |
1450
|
55
|
5.5
|
690
|
|
ISWR250-315B
|
260
450 520 |
72.2
125 144.4 |
25
24 20 |
70
74 72 |
1450
|
45
|
5.5
|
620
|
|
ISWR250-400
|
300
500 600 |
83.3
139 166.7 |
54.5
50 39 |
72
72 72 |
1480
|
90
|
4.5
|
1530
|
|
ISWR300-235
|
480
720 900 |
133.3
200 250 |
20
18 15.5 |
77
81 74 |
970
|
55
|
5.0
|
1120
|
|
ISWR300-235A
|
438
607 821 |
121.7
182.5 228.1 |
16.5
15 13 |
75
79 72 |
970
|
45
|
5.0
|
1030
|
|
ISWR300-235B
|
400
600 750 |
111.1
167.0 208.3 |
14
12.5 11 |
73
77 70 |
970
|
37
|
5.0
|
890
|
|
ISWR300-300
|
480
720 900 |
133.3
200 250 |
31
28 25 |
77
81 77 |
970
|
75
|
5.0
|
1350
|
|
ISWR300-300A
|
444
666 833 |
123.3
185 231.4 |
26.5
24 21.5 |
76
80 76 |
970
|
75
|
5.0
|
1350
|
|
ISWR300-300B
|
415
623 779 |
115.3
173.1 261.4 |
23
21 18.5 |
79
79 79 |
970
|
55
|
5.0
|
1170
|
|
ISWR300-380
|
480
720 900 |
133.3
200 250 |
48
44 34 |
84
84 84 |
970
|
132
|
5.0
|
1900
|
|
ISWR300-380A
|
444
666 833 |
123.3
185 231.4 |
41.4
38 30 |
80
80 80 |
970
|
110
|
5.0
|
1700
|
|
ISWR300-380B
|
409
614 767 |
113.6
170.6 213.1 |
35
32 25 |
78
78 78 |
970
|
90
|
5.0
|
1530
|
|
ISWR300-235I
|
718
1080 1345 |
199.4
300 373.6 |
44.6
40 34.6 |
82
82 82 |
1450
|
160
|
5.5
|
1680
|
|
ISWR300-235IA
|
642
965 1203 |
178.3
268.1 334.2 |
35.7
32 27.7 |
80
80 80 |
1450
|
132
|
5.5
|
1440
|
|
ISWR200-315I
|
280
440 520 |
77.8
111.4 144 |
36
32 26 |
73
80 75 |
1450
|
55
|
4.0
|
675
|
|
ISWR200-315IA
|
262
374 482 |
72.8
103.9 135 |
31.5
28 23 |
72
79 74 |
1450
|
45
|
4.0
|
560
|
|
ISWR200-315IB
|
242
346 450 |
67.2
96.1 125 |
27
24 19.5 |
78
78 78 |
1450
|
37
|
4.0
|
535
|
|
ISWR200-400I
|
280
400 520 |
77.8
, ,111.4 144 |
54.5
50 39 |
75
81 77 |
1450
|
75
|
4.0
|
830
|
|
ISWR200-400IA
|
262
374 486 |
72.8
103.9 135 |
48
44 34 |
80
80 80 |
1450
|
75
|
4.0
|
830
|
|
ISWR200-400IB
|
242
346 450 |
67.2
96.1 125 |
41.4
38 29.6 |
78
78 78 |
1450
|
55
|
5.0
|
685
|
|
ISWR200-400IC
|
224
320 416 |
62.2
88.9 115.6 |
34.9
32 25 |
76
76 76 |
1450
|
45
|
5.0
|
580
|
|
ISWR250-250
|
350
550 650 |
97.2
152.8 180.5 |
22
20 16 |
78
82 81 |
1450
|
45
|
5.0
|
620
|
|
ISWR250-250A
|
300
500 600 |
83.3
139 166.7 |
18.3
17 14 |
76
80 80 |
1450
|
37
|
5.0
|
550
|
|
ISWR250-235
|
300
500 600 |
83.3
139 166.7 |
14
12.5 11 |
73
78 70 |
1480
|
22
|
4.5
|
410
|
|
ISWR250-300
|
300
500 600 |
83.3
139 166.7 |
22
20 16 |
78
78
78 |
1480
|
37
|
4.5 | 550 |
|
ISWR250-315
|
350
550 650 |
97.2
152.8 180.5 |
34
32 28 |
76
80 79 |
1450
|
75
|
5.5
|
890
|
|
ISWR250-315A
|
300
500 600 |
83.3
139 166.7 |
29.5
28 24 |
74
78 77 |
1450
|
55
|
5.5
|
690
|
|
ISWR250-315B
|
260
450 520 |
72.2
125 144.4 |
25
24 20 |
70
74 72 |
1450
|
45
|
5.5
|
620
|
|
ISWR250-400
|
300
500 600 |
83.3
139 166.7 |
54.5
50 39 |
72
72 72 |
1480
|
90
|
4.5
|
1530
|
|
ISWR250-235
|
480
720 900 |
133.3
200 250 |
20
18 15.5 |
77
81 74 |
970
|
55
|
5.0
|
1120
|
|
ISWR250-235A
|
438
607 821 |
121.7
182.5 228.1 |
16.5
15 13 |
75
79 72 |
970
|
45
|
5.0
|
1030
|
|
ISWR250-235B
|
400
600 750 |
111.1
167.0 208.3 |
14
12.5 11 |
73
77 70 |
970
|
37
|
5.0
|
890
|
|
ISWR300-300
|
480
720 900 |
133.3
200 250 |
31
28 25 |
77
81 77 |
970
|
75
|
5.0
|
1350
|
|
ISWR300-300A
|
444
666 833 |
123.3
185 231.4 |
26.5
24 21.5 |
76
80 76 |
970
|
75
|
5.0
|
1350
|
|
ISWR300-300B
|
415
623 779 |
115.3
173.1 261.4 |
23
21 18.5 |
79
79 79 |
970
|
55
|
5.0
|
1170
|
|
ISWR300-380
|
480
720 900 |
133.3
200 250 |
48
44 34 |
84
84 84 |
970
|
132
|
5.0
|
1900
|
|
ISWR300-380A
|
444
666 833 |
123.3
185 231.4 |
41.4
38 30 |
80
80 80 |
970
|
110
|
5.0
|
1700
|
|
ISWR300-380B
|
409
614 767 |
113.6
170.6 213.1 |
35
32 25 |
78
78 78 |
970
|
90
|
5.0
|
1530
|
|
ISWR300-235I
|
718
1080 1345 |
199.4
300 373.6 |
44.6
40 34.6 |
82
82 82 |
970
|
160
|
5.5
|
1680
|
|
ISWR300-235IA
|
642
965 1203 |
178.3
268.1 334.2 |
35.7
32 27.7 |
80
80 80 |
970
|
132
|
5.5
|
1440
|
訂貨請盡量提供：1.型號2.口徑3.揚程（m）4.流量5.電機功率（KW）6.轉速（R/min）7.電壓（V）8.材質是否帶附件
臥式熱水管道離心泵ISWR型性能曲線圖
臥式熱水管道離心泵ISWR型訂貨請盡量提供：
1.型號2.口徑3.揚程（m）4.流量5.電機功率（KW）6.轉速（R/min）7.材質是否帶附件8.電壓（V）
卓力工礦是國內知名ISWR臥式熱水管道泵生產廠家，有豐富的經驗為客戶提供高品質的ISWR臥式熱水管道泵及完善的售后服務，如果您想了解最新ISWR臥式熱水管道泵價格或者更詳細信息，歡迎撥打服務熱線：
13280082001 18605374511.或者聯系在線客服：
點擊這里、立刻咨詢；我們攜程為您服務！
常見問題：ISWR臥式熱水管道泵發貨時間？ ISWR臥式熱水管道泵售后保障？ ISWR臥式熱水管道泵訂貨需要提供什么信息？
產品標簽：ISWR臥式熱水管道泵|
ISWR臥式熱水泵|臥式離心泵
|
上一篇：ISW臥式管道離心泵
下一篇：ISWD臥式低轉速管道泵
